MachineCam Mobility HD

MachineCam Mobility HD

Regular price €649,00 EUR
Regular price Sale price €649,00 EUR
Sale Sold out

✔︎ Robust & waterproof IP69K camera
✔︎ 7” IPS digital monitor
✔︎ 8G vibration

A unique camera system for all your machines.

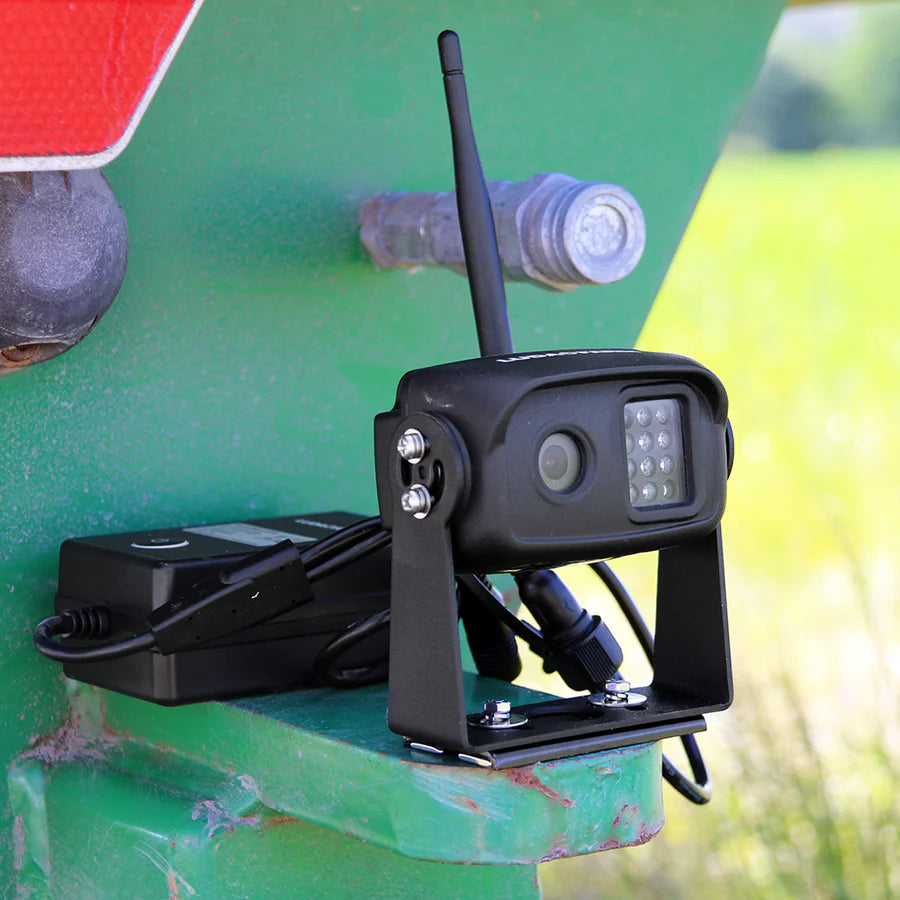

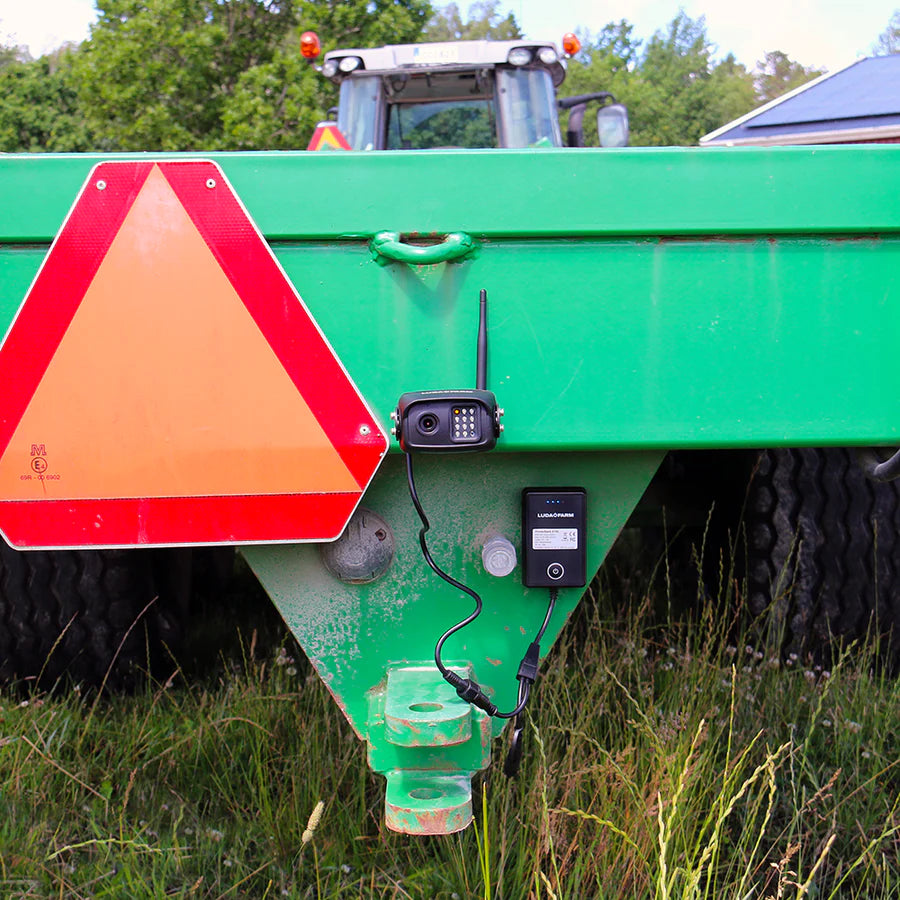

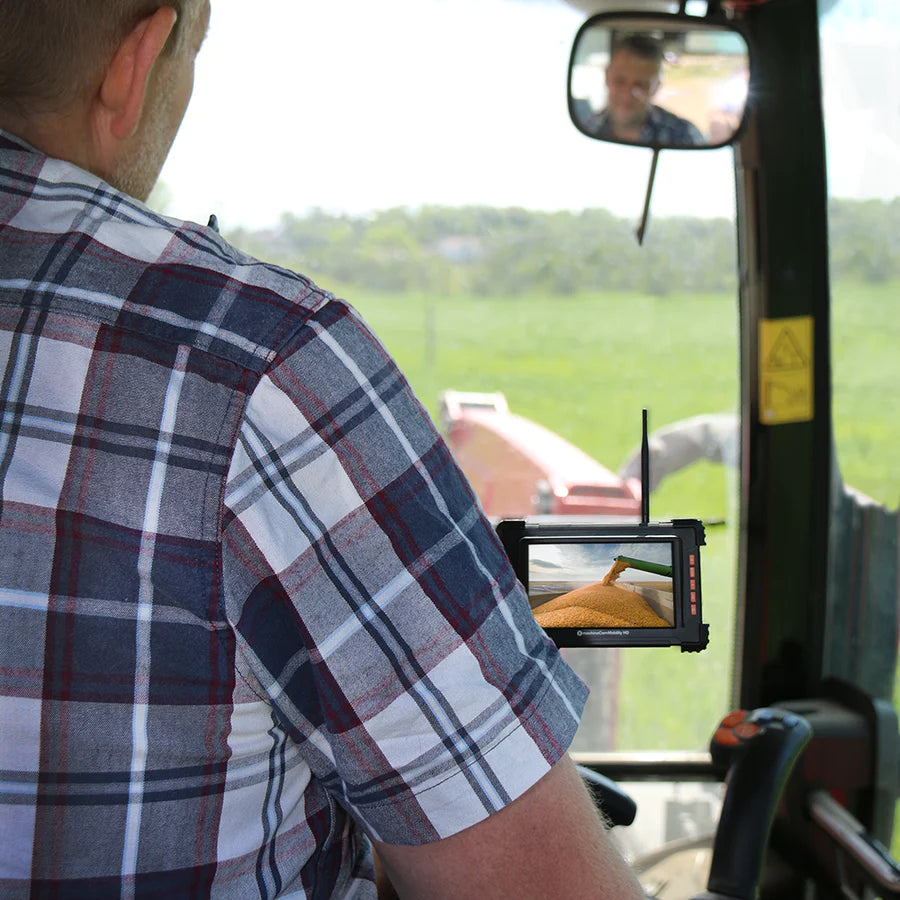

With a transmitting range of up to 100 meter, MachineCam Mobility HD is an all-in-one solution that you can use for all your machines. It has a unique mounting solution where the cameras are attached with magnets with a holding force of 40 kg. The 7” HD monitor is powered with a 12 V power socket and is attached to the machine with a strong suction bracket. The IP69K rated camera has night vision up to 10 meter and you can connect two cameras to the system. The camera automatically appears in the monitor when they connect. Should large amounts of steel etc. block the signal, it is possible to add a cable with antenna that can be mounted in a way that allows free line-of-sight.

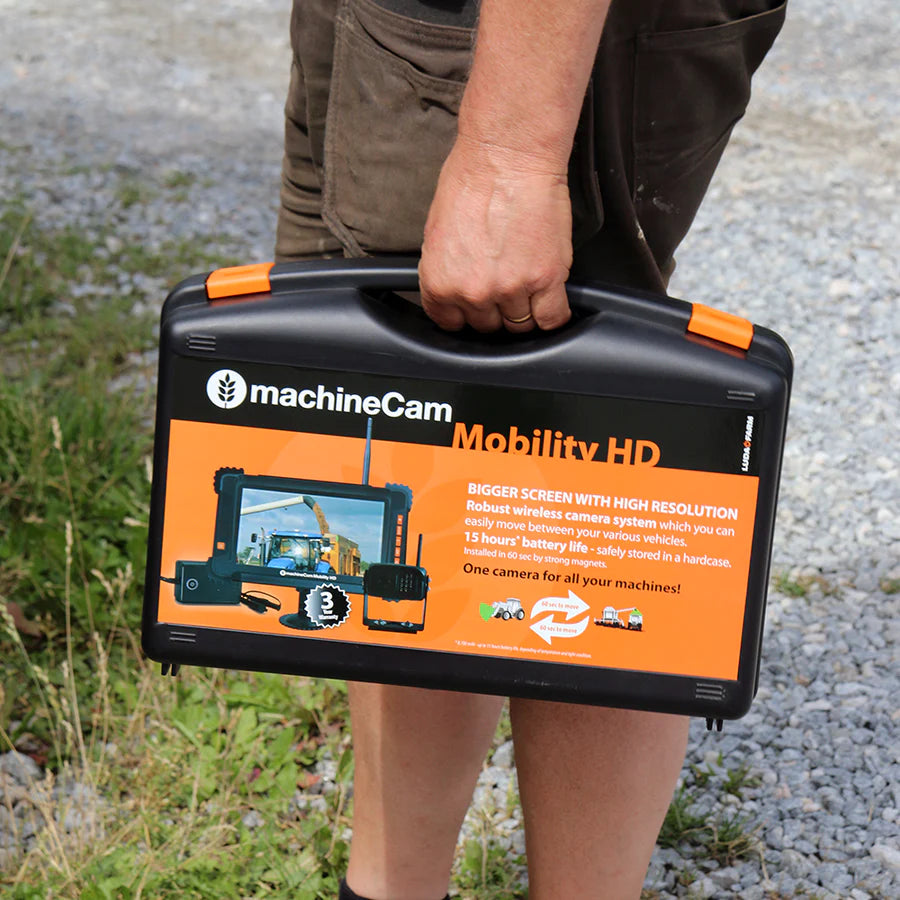

With the included PowerBank, you can use your camera system for up to 15 hours on a single charge. MachineCam Mobility HD also comes in a sturdy case that allows you to easily carry the camera with you. The camera lens is equipped with two layers of glass, making it suitable for working in dusty and tough environments.

It is easy to add an extra camera to your system. We recommended pairing the camera with the monitor before mounting it. Connect the camera to a power source, press the CH button on the monitor and go to the channel where you want to pair the camera. Press and hold the M/PAIR button until the countdown starts. Within the 60-second countdown, press and hold the button on the back of the camera until you see that the camera has been paired. Mount the camera in the desired position after making sure the signal strength is good enough.

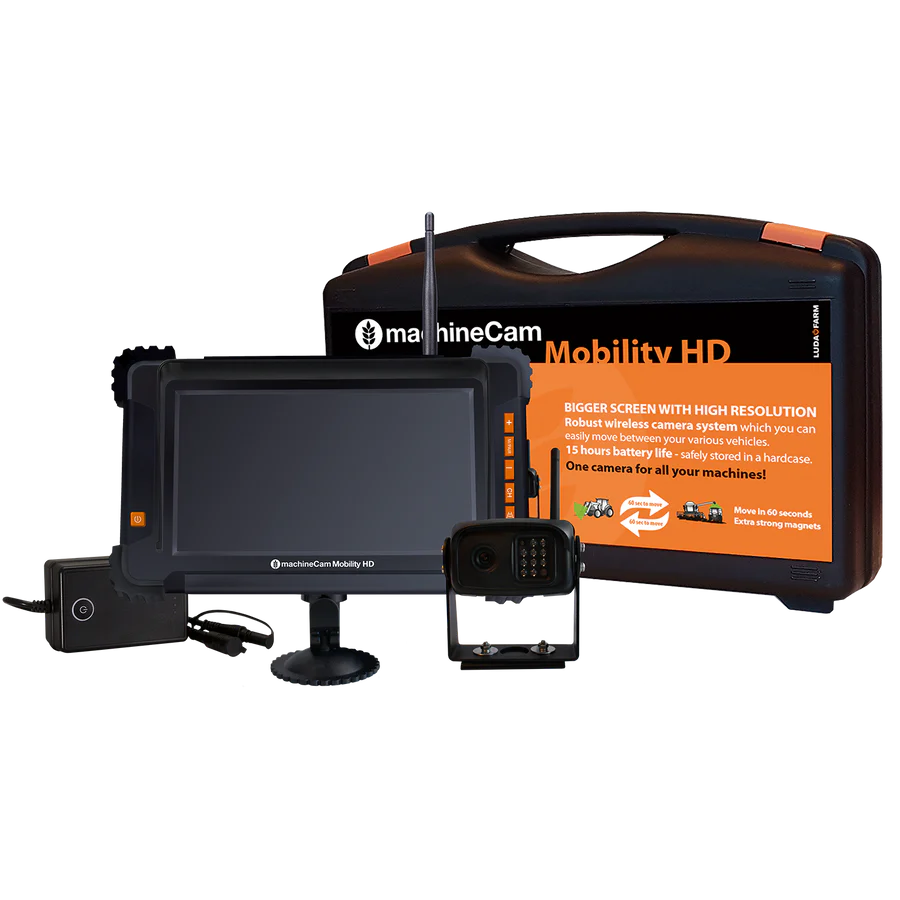

Included in the package:
1 x Monitor
1 x Camera
1 x PowerBank
1 x 12 V adapter
1 x Camera power cable
1 x PowerBank power adapter
1 x Suction bracket

Operating frequency: 2400 - 2483.5 MHz Operating frequency: 2400 - 2483.5 MHz
Sensor: Color CMOS Screen size: 7"
Resolution: 720p Resolution: 1024 x 600
Antenna output power: 22 dBm  Max range line-of-sight: Up to 100 m
Max range line-of-sight: Up to 100 m Latency: 100 ms
IP classification: IP69K Frame rate: 30 f/s
Minimum illumination: 0.1 Lux Operation temperature: - 20°C to + 70°C
Night vision: Up to 10 m Brightness:  500 cd/m2
Angle of view: 110° Power supply: 5 V - 32 VDC
Power supply: 12 V - 32 VDC Power consumption:  2,5 W
Power consumption: 2 W Channels: 2
Visible LED illumination: No Recording: No
IR LED illumination: Yes Antenna output power: 22 dBm
Size: 10 cm x 8 cm x 9 cm
Weight: 397 g
