MachineCam HD

MachineCam HD

Regular price €829,00 EUR
Regular price Sale price €829,00 EUR
Sale Sold out

✔︎ 7" HD monitor
✔︎ Robust & waterproof IP69K camera
✔︎ Up to 300 m range

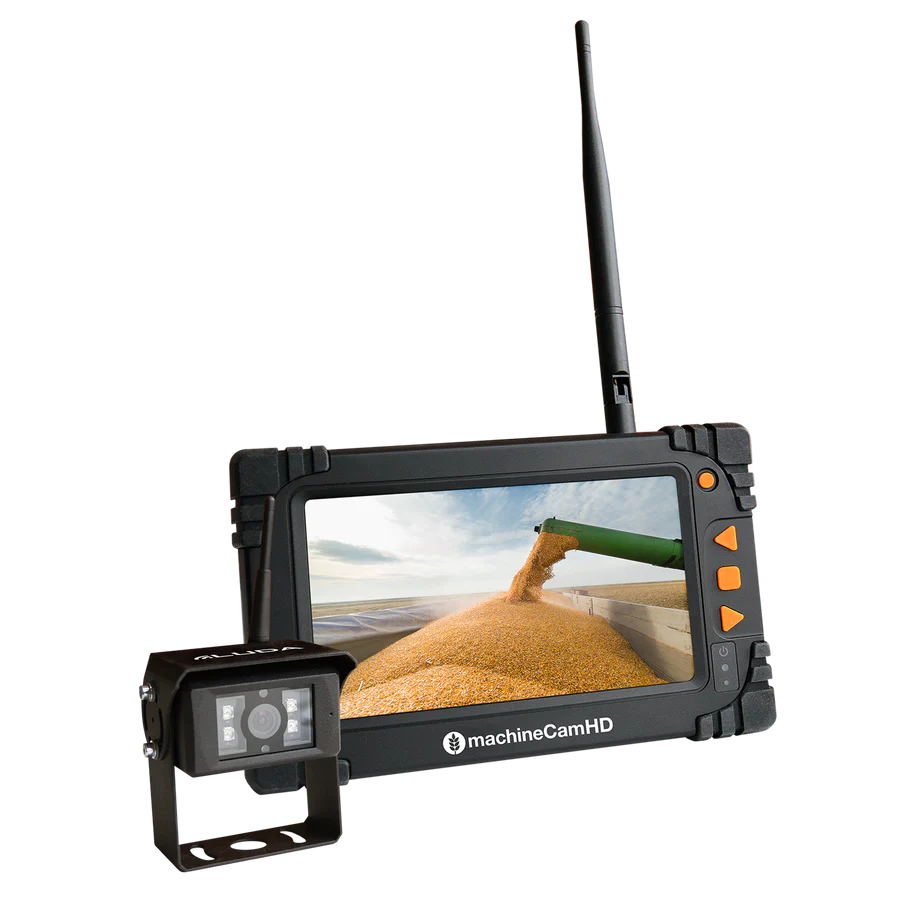

MachinceCam HD is a wireless HD camera system with extended pro features, designed for the toughest of conditions.

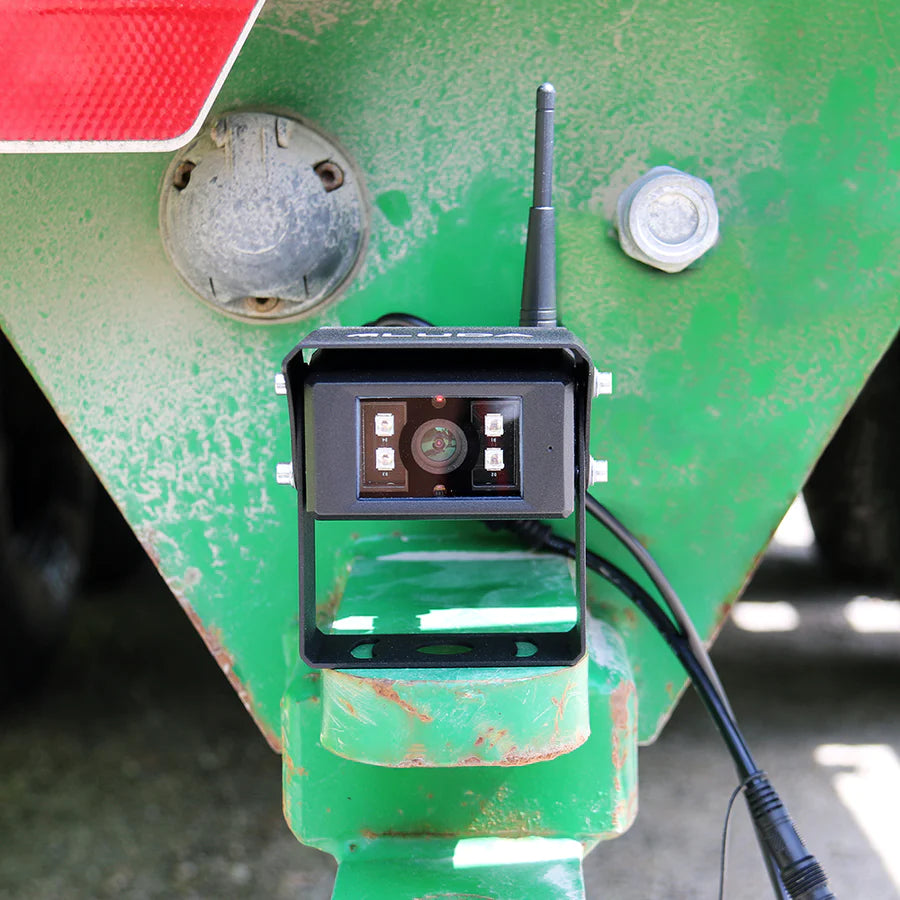

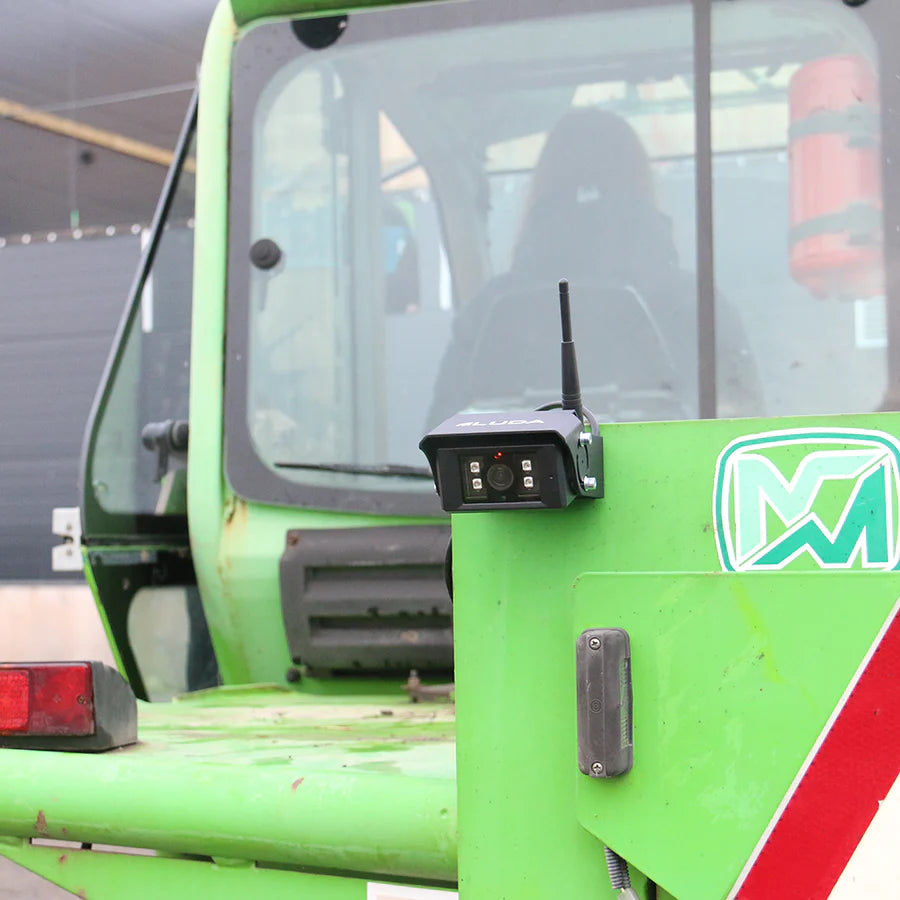

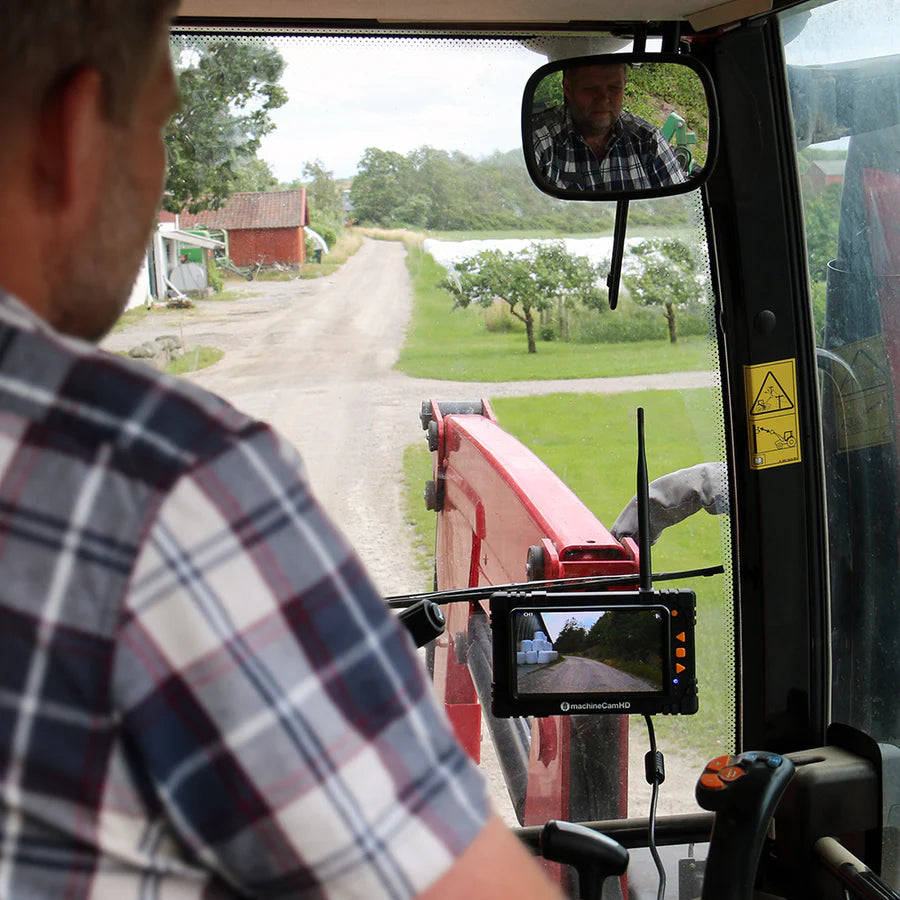

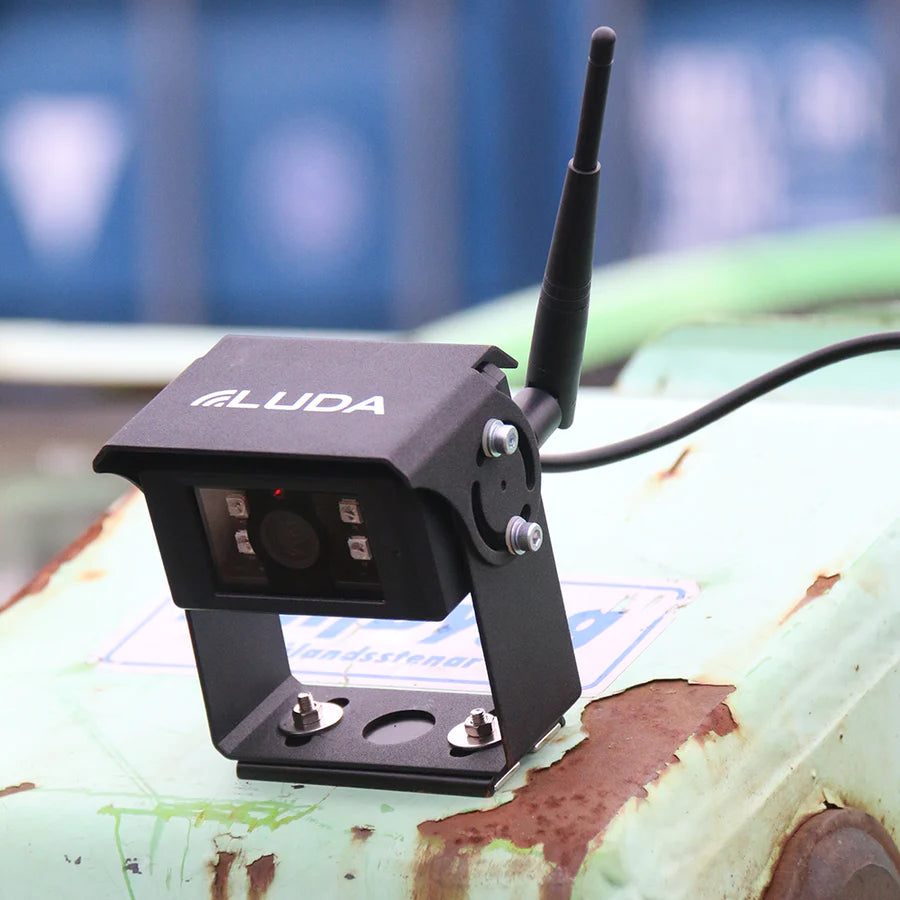

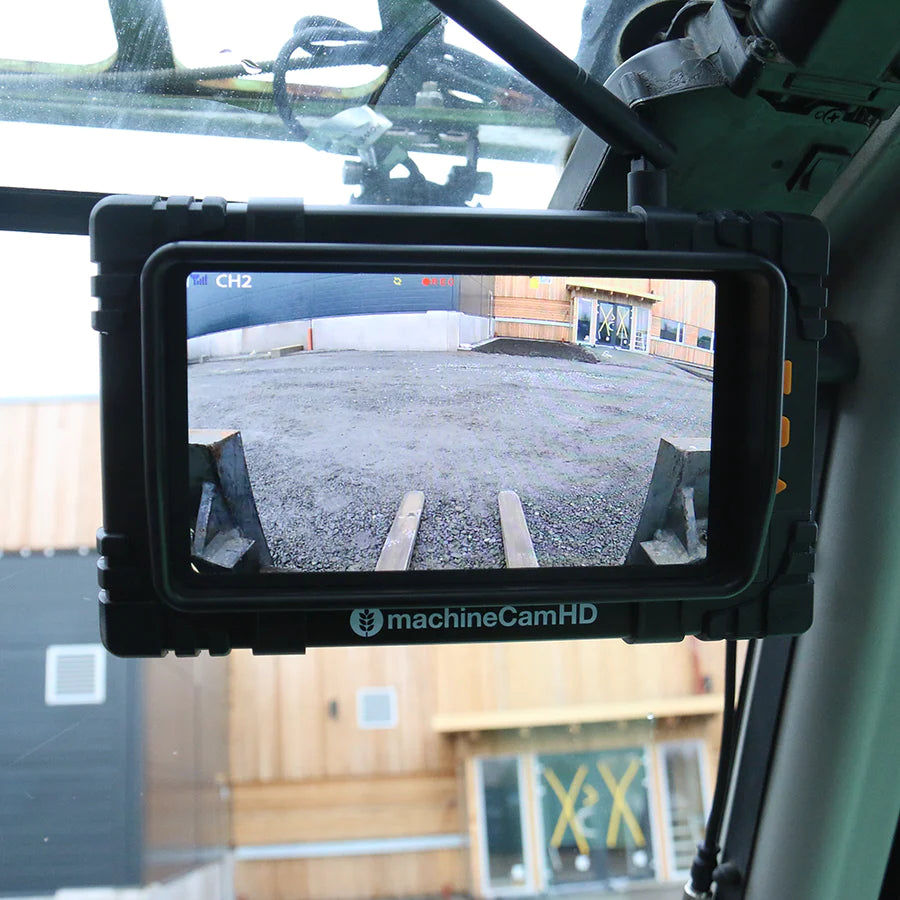

With a range of up to 300 m, MachineCam HD was developed to perform without interference in the toughest of conditions. The robust and waterproof HD camera is IP69K rated and it’s high-powered IR-system lights up approx. 10 meters in front of the camera. The 7” monitor has a true format of 16:9, which shows the image exactly as it looks in reality. The system connects up to four cameras and has an auto-reverse camera switch. With the split-screen feature, you can view two cameras simultaneously. A paired camera and monitor will automatically reconnect whenever in range and powered on.

The camera can be used together with our PowerBanks, a solid rechargeable battery with a very strong magnet, which allows you to move and place the camera where it captures the best view.

The camera lens is equipped with two layers of glass, making it suitable for working in dusty and tough environments.

You can use a SD-card (not included) to easily record and document what you see on the monitor. It will record the channel (or channels if the monitor is put in split-screen mode) that you see on the monitor.

Bolts and screws for attaching the camera is not included in the system.

Included in the package:
1 x Monitor
1 x Camera
1 x 12 V monitor adapter
1 x 3 dBi antenna
1 x 5 dBi antenna
1 x Camera power cable
1 x Monitor direct power cable
1 x Sunshade for monitor
1 x Suction bracket

Operating frequency: 2412 - 2467 MHz Operating frequency: 2400 - 2483.5 MHz
Sensor: 1/4″ CMOS HM1246 Screen size: 7"
Resolution: 1280 x 720p Resolution: 1024 x 600
Antenna output power: 18 dBm  Max range line-of-sight: Up to 300 m
Max range line-of-sight: Up to 300 m Latency: 200 ms
IP classification: IP69K Frame rate: 25 f/s
Minimum illumination: 0 Lux Operation temperature: - 20°C to + 70°C
Night vision: Up to 10 m Brightness:  500 cd/m2
Angle of view: 110° Power supply: DC 10 - 32 V
Power supply (DC): 12 - 32 V Power consumption:  8 W
Power consumption: 2 W Channels: 4
Visible LED illumination: No Recording: Yes
IR LED illumination: Yes Loop functionality: Yes
Size: 10 cm x 8 cm x 9 cm Split screen function: Yes
Weight: 397 g Auto reverse function: Yes
