✔︎ Add up to four cameras
✔︎ Up to 50 m line-of-sight range
✔︎ Up to 10 m night vision
ForkliftCam is a professional digital camera system designed for forklifts.

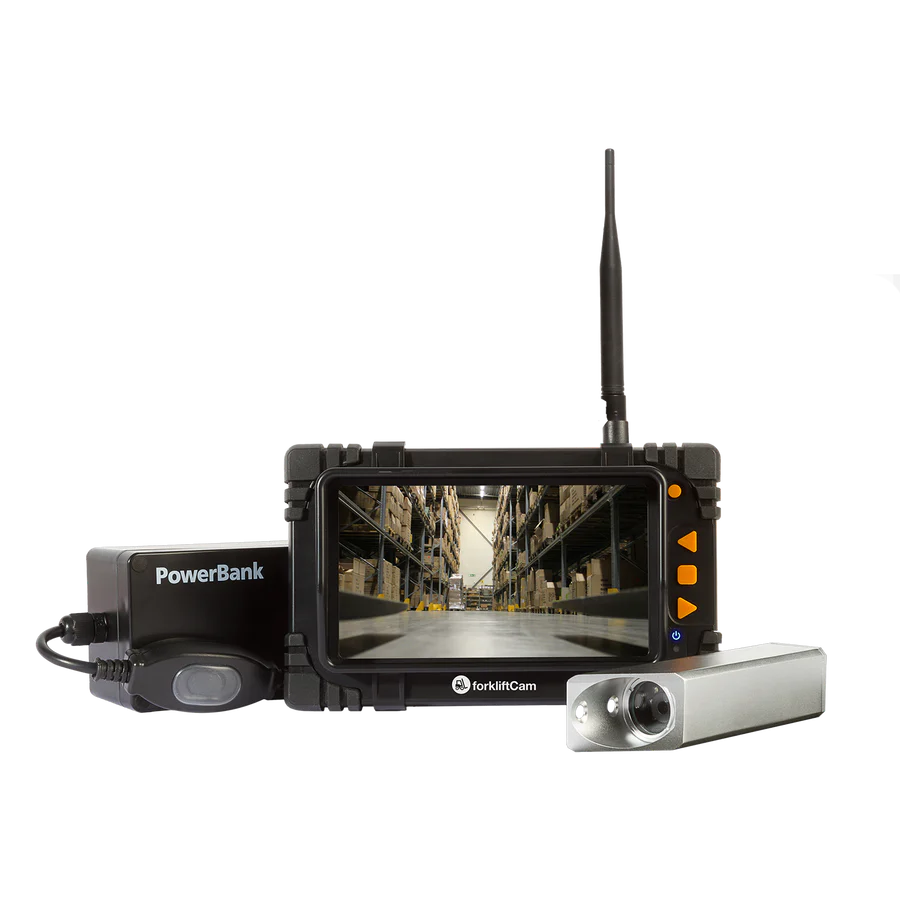

ForkliftCam was designed for daily usage in tough conditions. The robust combination of an IP69K camera, a shock-tolerant 7’’ monitor, and a PowerBank with 40 kg of holding force makes this kit perfect for use in industry, warehousing, and logistics.

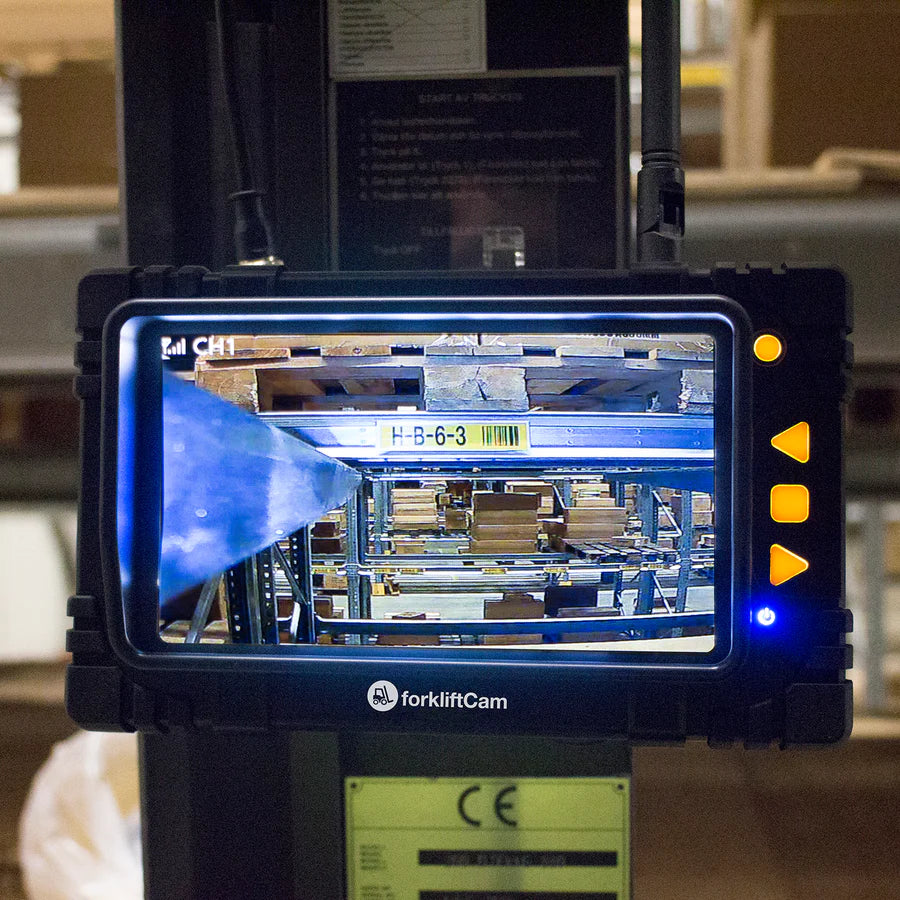

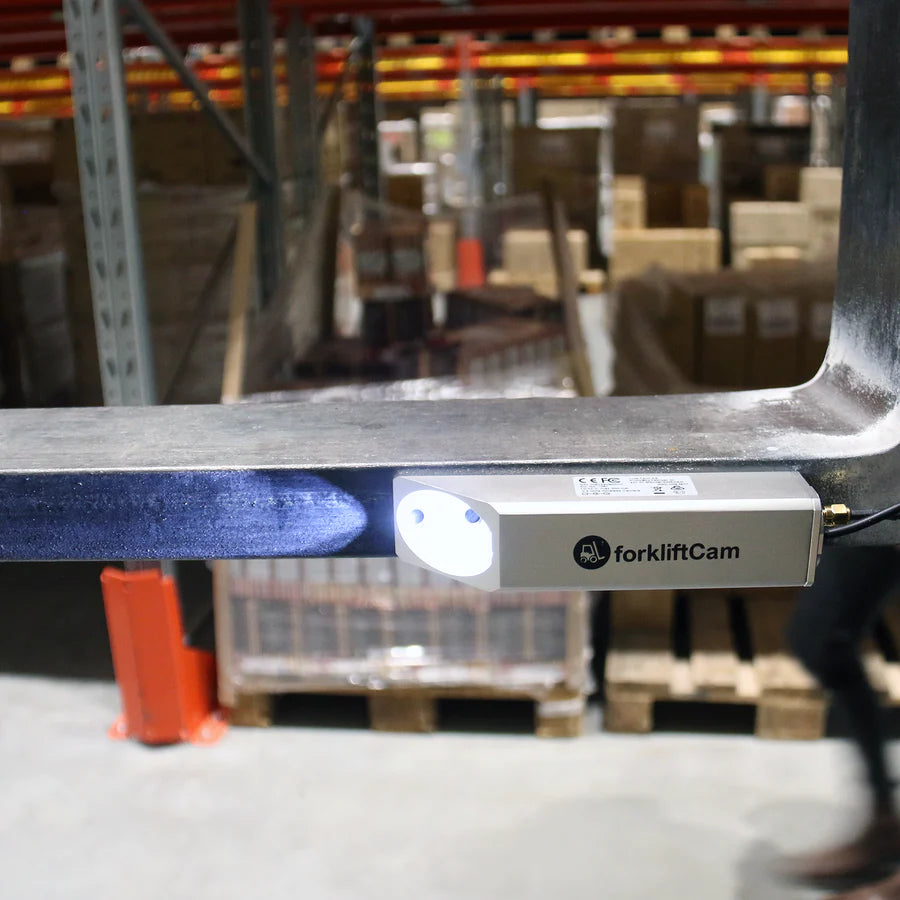

The camera transmits a high-resolution and interferencefree signal to the monitor for razor-sharp image quality. It is also equipped with LED lighting to keep the area around the fork tips visible even in dark conditions.
At full charge, the PowerBank will last for up to 32 hours of two-camera operation. This system can be supplemented with other vehicle cameras, such as a rear-view camera. The picture of two cameras can be viewed simultaneously in the split-screen function of the monitor.
You can use a SD-card (not included) to easily record and document what you see on the monitor. It will record the channel (or channels if the monitor is put in split-screen mode) that you see on the monitor.
Included in the package:
1 x Monitor
1 x Camera
1 x 3 dBi antenna
1 x Monitor direct power cable
1 x Camera power cable
1 x PowerBank 25000
1 x Sunshade for monitor
1 x Flat antenna 10 cm
1 x Fan shaped monitor stand
Camera |
Monitor |
||
|---|---|---|---|
| Operating frequency: | 2400 - 2483.5 MHz | Power supply: | 10 - 32 VDC |
| Operating temperature: | - 20°C - +70°C | Screen size: | 7" |
| Power supply: | 10 - 32 VDC | Power consumption: | 6W |
| Antenna output power: | 20 dBm | Resolution: | 800 x 480 |
| Antenna: | 3 dBi | Aspect ratio: | 16:9 |
| Camera angle: | 45° | IP classification: | IP30 |
| IP classification: | IP69K | Operation temperature: | - 20°C to + 70°C |
| Max range line-of-sight: | Up to 50m | Antenna: | 5dBi |
| Visible LED illumination: | Yes | Channels: | 4 |
| IR LED illumination: | No | Latency: | 120 ms |
| Power consumption: | 200mA/12V - 105mA/24V | System format: | PAL / NTSC |
| Split screen function: | Yes | ||
| Recording: | Yes | ||
| Loop functionality: | Yes | ||
