Bridge 300

Bridge 300

Regular price €229,00 EUR
Regular price Sale price €229,00 EUR
Sale Sold out

✔︎ IP65 weatherproof
✔︎ Up to 1500 m transmission range
✔︎ -40 C - 55 C working temperature

Bridge 300 extends your household internet connection to wherever you need it.

Bridge 300 is an internet bridge that transmits a wireless signal between two locations with a transmission range of up to 1500 m free line of sight. The wireless signal eliminates the need for buried cabling and enables you to get internet in remote places. You do not need existing internet connection in your barn or farm building, the bridge extends your household internet connection to wherever you need it.

The bridge is weatherproof and has an IP65 rating. The transmission between the antennas is encrypted to provide effective protection against interception of the communication whilst the data is in transfer.

You connect the antenna marked with number one (1) to your home router (network cable not included), using the included EPOWER adapter that combines power and network to the antenna. The second antenna, marked with number two (2) is mounted on the barn or farm building that you want to monitor. Once antenna number two is installed you connect it to the Flex Hub unit (network cable not included), the antenna now provides internet connection to the Flex Hub and the Flex Hub provides power to the antenna.

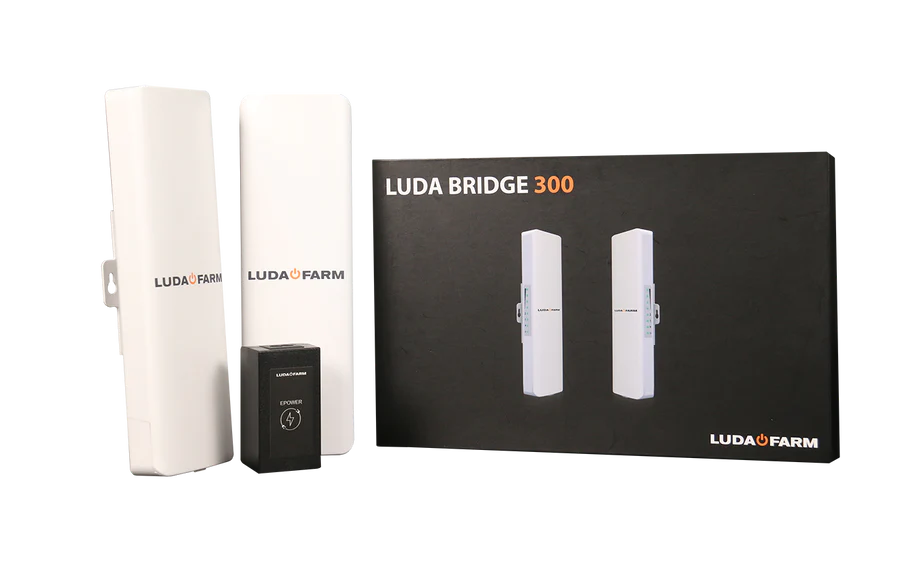

Included in the package:
2 x Antennas
4 x Steel cable ties

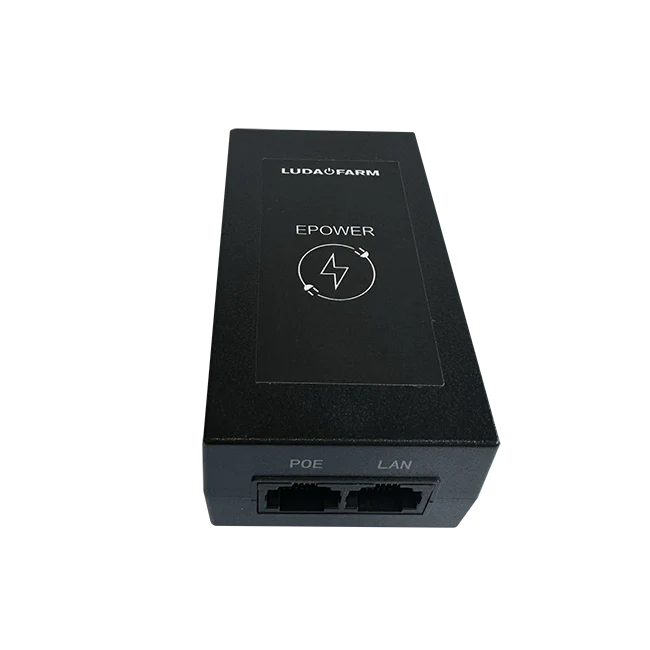

1 x EPOWER adapter
1 x EPOWER power cable

This product requires a Flex Hub unit at the site you want to monitor to function

Bridge 300


Physical Ports:1 x 10/100 Mbps WAN RJ45 (Service only)
1 x 10/100 Mbps LAN RJ45 (POE)
1 x Pair button
1 x Receiver/Sender SwitchPower:802.3.af/at (POE)
48V POE Power adapter
<8W consumptionIP classification:IP65Size:262 x 80 x 53 mmWireless standard:IEEE802.11b/g/nWeight:0,32 KGTransmission Rate:40Mhz: 300 MbpsPower Source:IEEE 802.3af, 48V ActiveAntenna:Built-in 2x14dBiWorking temperature:  -40°C to 55°CStorage temperature:  -50°C to 75°C
